MEMBRAY® Toray MBR Membrane

Toray's Membrane Bioreactor (MBR) process is a combination of biological wastewater treatment and membrane filtration. Biodegradable pollution is reduced using bacteria and microorganisms. Following biological treatment, the activated-sludge is separated from the treated water by a microfiltration membrane. MBR Technology explained Toray's MEMBRAY® MBR Membranes are PVDF flat sheet membranes with a PET non-woven support layer. The nominal pore size is 0.08 microns with a narrow pore size distribution. Toray membrane elements with a 1.4 m2 or a 0.9 m2 membrane area are joined to our membrane module. These modules are composed of 50 to 200 membrane elements.


MEMBRAY® Toray MBR Membrane
Contact

OVERVIEW TMR140 SERIES

Membrane Bioreactor (MBR) process is a combination of biological wastewater treatment and membrane filtration. Biodegradable pollution such as BOD is reduced by activated sludge. Following biological treatment, treated water is separated from activated sludge by Toray's microfiltration membrane.

MEMBRAY® TMR140 Series Brochure

MBR Technology explained

Toray's MEMBRAY® MBR Membranes are PVDF flat sheet membranes with a PET non-woven support layer. The nominal pore size is 0.08 microns with a narrow pore size distribution. Toray membrane elements with a 1.4m2 membrane area are joined to our membrane module. These modules are composed of 50 to 200 membrane elements.

MBR Modules

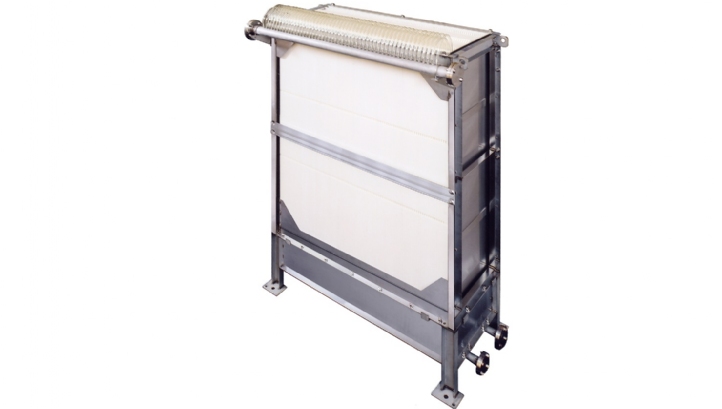

MEMBRAY® modules consist of a membrane element, a stainless steel element frame, a permeated water manifold and an aeration block.

Certification

MEMBRAY® TMR140 Series have been certified by California Department of Public Health (CDPH) as an acceptable filtration technology for compliance with the State of California Water Recycling Criteria (Title 22) since October 2008.
