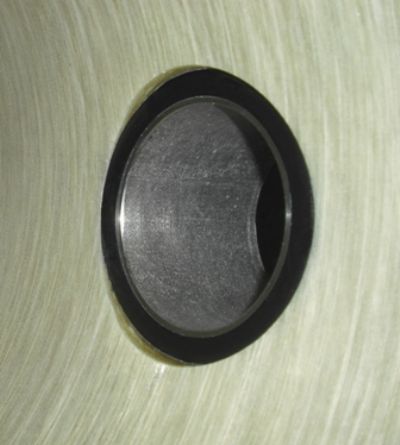

8 Side Port / Multiple port vessel

Side Port Vessels designed to accommodate standard 8" membranes, from 1 membrane up to 8 membranes. The vessel body produced by a continuous filament winding process and the feed and concentrate pipe connections are located on the side of the vessel body

8 Side Port / Multiple port vessel

The trust ring is a part of the End Cap and available on both sides, keeps the membranes tight all time and reduce the burnout of the O-rings. Multiple ports 8" vessels with 3 and 4 Side Ports 1.5", 2", 3" and 4" are available, Users of BEL Multiple Port Pressure Vessels claim significant proven technological and commercial advantages:

  • Cost reduction on plant construction materials, piping, labor and accessories
  • Smaller footprint
  • Lower long term maintenance expense
  • Flexible design

  • Larger diameter ports allow improved flow rate from inlet to the next vessel in row. BEL Multiple Port Vessels are available with up to 4" diameter Side Ports.
